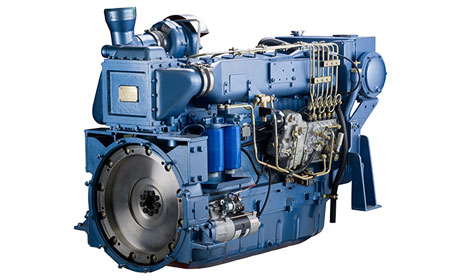

潍柴WD10系列船用柴油机
更新时间：2016-03-22 13:50 作者:品牌发电机
产品简介：
WD10（WD615）系列船用柴油机是潍柴自奥地利斯太尔公司引进的具有国际先进水平的重型柴油机，通过对外围零部件的改进，以满足各种船舶的工作要求；柴油机冷却系统采用内外双循环水冷的方式，内循环用淡水对柴油机进行冷却，外循环用海水通过海淡水热交换器对淡水冷却，提高了柴油机的使用寿命。
该系列柴油机是内河航运、渔业捕捞、公务船艇等船舶最佳匹配动力。
技术参数表：
|
形式 |
四冲程、水冷、直列、干式缸套、直喷 |
气缸数 |
6 |
|
缸径/行程 |
126×130 mm |
排量 |
9.726L |
|
最低燃油消耗率 |
195g/kW·h |
机油消耗率 |
0.5g/kW·h |
|
启动方式 |
电启动 |
怠速 |
600±30 r/min |
|
发火顺序 |
1-5-3-6-2-4 |
烟度 |
≤1.2 RB |
|
噪声 |
≤108dB(A) |
排放标准 |
IMO TIER Ⅱ |
|
曲轴旋转方（面向自由端） |
顺时针 |
柴油机大修期 |
6000 h |
型谱表：
|
WD10 （615）系列船用柴油发动机型谱表 |
|
发动机型号 |
气缸数 |
缸径/行程(mm) |
排量 (L) |
额定功率(kW) |
额定转速(r/min) |
适用范围 |
|
WD615.61C-18B |
6 |
126/130 |
9.726 |
88 |
1800 |
CCS |
|
WD615.61C-10A |
6 |
126/130 |
9.726 |
110 |
1800 |
CCS/ZY |
|
WD615.61C-15 |
6 |
126/130 |
9.726 |
110 |
1500 |
CCS |
|
WD615.61C-15A |
6 |
126/130 |
9.726 |
110 |
1500 |
CCS |
|
WD615.61C-15B |
6 |
126/130 |
9.726 |
110 |
1500 |
CCS |
|
WD615.61C-18 |
6 |
126/130 |
9.726 |
110 |
1800 |
CCS/ZY |
|
WD615.61C-18A |
6 |
126/130 |
9.726 |
110 |
1800 |
CCS/ZY |
|
WD615.61C-6 |
6 |
126/130 |
9.726 |
110 |
1800 |
CCS/ZY |
|
WD615.61C-2A |
6 |
126/130 |
9.726 |
121 |
2100 |
CCS |
|
WD615.67C-15B |
6 |
126/130 |
9.726 |
121 |
1500 |
CCS/ZY |
|
WD10C170-15 |
6 |
126/130 |
9.726 |
125 |
1500 |
CCS |
|
WD615.C-28 |
6 |
126/130 |
9.726 |
125 |
1500 |
CCS |
|
WD615.61C-12 |
6 |
126/130 |
9.726 |
130 |
1940 |
CCS/ZY |
|
WD615.67C-15A |
6 |
126/130 |
9.726 |
136 |
1500 |
CCS/ZY |
|
WD10C190-15 |
6 |
126/130 |
9.726 |
140 |
1500 |
CCS |
|
WD10C190-18 |
6 |
126/130 |
9.726 |
140 |
1800 |
CCS |
|
WD615.61C |
6 |
126/130 |
9.726 |
140 |
1800 |
CCS |
|
WD615.61C-10 |
6 |
126/130 |
9.726 |
140 |
1800 |
CCS |
|
WD615.61C-10B |
6 |
126/130 |
9.726 |
140 |
1800 |
CCS/ZY |
|
WD615.61C-6A |
6 |
126/130 |
9.726 |
140 |
1800 |
CCS/ZY |
|
WD615.C-24 |
6 |
126/130 |
9.726 |
140 |
1500 |
CCS |
|
WD615.C-27 |
6 |
126/130 |
9.726 |
140 |
1500 |
CCS |
|
WD615.61C-6B |
6 |
126/130 |
9.726 |
144 |
1800 |
CCS |
|
WD10C200-21 |
6 |
126/130 |
9.726 |
147 |
2100 |
CCS |
|
WD615.61C-2 |
6 |
126/130 |
9.726 |
147 |
2100 |
CCS |
|
WD615.61C-21 |
6 |
126/130 |
9.726 |
147 |
2100 |
CCS |
|
WD615.61C-21A |
6 |
126/130 |
9.726 |
147 |
2100 |
CCS/ZY |
|
WD615.61CA-21A |
6 |
126/130 |
9.726 |
147 |
2100 |
CCS |
|
WD615.61C-20 |
6 |
126/130 |
9.726 |
155 |
2000 |
CCS |
|
WD615.67C-18 |
6 |
126/130 |
9.726 |
155 |
1800 |
CCS/ZY |
|
WD10C218-15 |
6 |
126/130 |
9.726 |
160 |
1500 |
CCS |
|
WD615.68C-18 |
6 |
126/130 |
9.726 |
160 |
1800 |
CCS/ZY |
|
WD615.C-23 |
6 |
126/130 |
9.726 |
160 |
1500 |
CCS |
|
WD10C240-15 |
6 |
126/130 |
9.726 |
176 |
1500 |
CCS |
|
WD10C240-18 |
6 |
126/130 |
9.726 |
176 |
1800 |
CCS |
|
WD615.67C |
6 |
126/130 |
9.726 |
176 |
1800 |
CCS/ZY |
|
WD615.67C-10 |
6 |
126/130 |
9.726 |
176 |
1800 |
CCS/ZY |
|
WD615.67C-10A |
6 |
126/130 |
9.726 |
176 |
1800 |
CCS |
|
WD615.67C-10B |
6 |
126/130 |
9.726 |
176 |
1800 |
CCS |
|
WD615.67CA-18 |
6 |
126/130 |
9.726 |
176 |
1800 |
CCS |
|
WD615.67CA-18A |
6 |
126/130 |
9.726 |
176 |
1800 |
CCS |
|
WD615.C-22 |
6 |
126/130 |
9.726 |
176 |
1500 |
CCS |
|
WD615.67C-20 |
6 |
126/130 |
9.726 |
180 |
2000 |
CCS |
|
WD615.67C-22 |
6 |
126/130 |
9.726 |
180 |
2200 |
CCS |
|
WD10C258-15 |
6 |
126/130 |
9.726 |
190 |
1500 |
CCS |
|
WD615.C-21 |
6 |
126/130 |
9.726 |
190 |
1500 |
CCS |
|
WD615.68C-19 |
6 |
126/130 |
9.726 |
192 |
1900 |
CCS/ZY |
|
WD10C278-15 |
6 |
126/130 |
9.726 |
205 |
1500 |
CCS |
|
WD10C278-18 |
6 |
126/130 |
9.726 |
205 |
1800 |
CCS |
|
WD615.46C-11 |
6 |
126/130 |
9.726 |
205 |
1800 |
CCS |
|
WD615.68C |
6 |
126/130 |
9.726 |
205 |
2100 |
CCS/ZY |
|
WD615.68C-21 |
6 |
126/130 |
9.726 |
205 |
2100 |
CCS/ZY |
|
WD615.68C-6 |
6 |
126/130 |
9.726 |
205 |
2100 |
CCS |
|
WD615.68CA |
6 |
126/130 |
9.726 |
205 |
2100 |
CCS/ZY |
|
WD615.68C-3 |
6 |
126/130 |
9.726 |
207 |
2000 |
CCS |
|
WD10C300-21 |
6 |
126/130 |
9.726 |
220 |
2100 |
CCS |
|
WD615.46C |
6 |
126/130 |
9.726 |
220 |
2100 |
CCS/ZY |
|
WD10C312-18 |
6 |
126/130 |
9.726 |
230 |
1800 |
CCS |
|
WD10C312-21 |
6 |
126/130 |
9.726 |
230 |
2100 |
CCS |
|
WD10C326-21 |
6 |
126/130 |
9.726 |
240 |
2100 |
CCS |
|
WD615.46C-1 |
6 |
126/130 |
9.726 |
240 |
2100 |
CCS/ZY |
|
WP10C170E200 |
6 |
126/130 |
9.726 |
125 |
1500 |
CCS |
|
WP10C190E200 |
6 |
126/130 |
9.726 |
140 |
1500 |
CCS |
|
WP10C190E201 |
6 |
126/130 |
9.726 |
140 |
1800 |
CCS |
|
WP10C200E202 |
6 |
126/130 |
9.726 |
147 |
2100 |
CCS |
|
WP10C218E200 |
6 |
126/130 |
9.726 |
160 |
1500 |
CCS |
|
WP10C240E200 |
6 |
126/130 |
9.726 |
176 |
1500 |
CCS |
|
WP10C240E201 |
6 |
126/130 |
9.726 |
176 |
1800 |
CCS |
|
WP10C258E200 |
6 |
126/130 |
9.726 |
190 |
1500 |
CCS |
|
WP10C278E200 |
6 |
126/130 |
9.726 |
205 |
1500 |
CCS |
|
WP10C278E201 |
6 |
126/130 |
9.726 |
205 |
1800 |
CCS |
|
WP10C300E202 |
6 |
126/130 |
9.726 |
220 |
2100 |
CCS |
|
WP10C312E201 |
6 |
126/130 |
9.726 |
230 |
1800 |
CCS |
|
WP10C312E202 |
6 |
126/130 |
9.726 |
230 |
2100 |
CCS |
|
WP10C326E202 |
6 |
126/130 |
9.726 |
240 |
2100 |
CCS |
